CK6140

CK6140A CNC Lathe Data

  Max Rotary Diameter on Bed

(mm)

400

  Rotary Diameter on Slide

(mm)

200

  Max Length for workpiece

(mm)

750

  Width of Guiderail

(mm)

340

Spindle Speed

(r/min)

200-2000 AC

  Spindle Taper

(mm)

Φ52

  Main Motor Power

(kw)

5.5kW AC

  Z Travel

(mm)

800

  X Travel

(mm)

235

  Driving  Motor Torque X/Z

N.M

Servo 5/7.7


Packing:Wooden Case,Standard packing

Delivery Time: 26Days


Datan every spindle are processed by 13 severe steps,
four process test, and two times of dynamic balance
test,to ensure every spindle can play a high precision
and high stability in operation.

cnc lathe cost

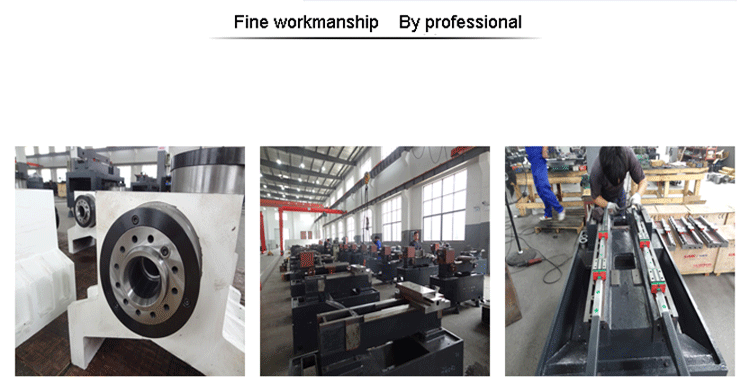

Every process will be based on verification of the installation process by professional trained staff and continual卜enhance the quality consciousness,so that every day we produce every lathe with high accuracy and high stability.

cnc lathe cost

We use sophisticated detection equipment assist our machines to achieve the best accuracy,although we added more testing equipment investment than its competitors,as well as more complex and difficult to assemble.

cnc lathe cost

For More efficient, we provide customers a number of configurations to choose according to their own material processing,purchasing budget。efficiency requirements,planning your own machine configuration. We are very happy to provide you with the most professional advice base on our of experience In manufacture.

The use of automated parts to reduce the Labor cost,The machine Reduction space usage From the clever Sheet metal design,Each oil hose from the protection of the metal sleeve, making they don't damage by external environment

cnc lathe cost

Each machine include DATAN wisdom

Made in DATAN  every machine Contains the DATANcrystall- ization technology,Every process of installation and test w- ent through the verification of millions of customers, We stri- ve to improve the performance of the machine,And the p- rocessing efficiency,Let the customer experience with the best price to experience the best products.

cnc lathe machine

    We control every step

                                   We strive for perfection,In the factory before.
                               For the machine to transport the preparation before.
Each component of the of each machine conducted a number of checks to determine the error.
                                    Let what customer see Is what customer get

metal lathe for sale


DATAN CK6140A CNC Lathe Data

 Max Rotary Diameter on Bed

(mm)

400

 Rotary Diameter on Slide

(mm)

200

 Max Length for workpiece

(mm)

750

 Width of Guiderail

(mm)

340

 Spindle Speed

(r/min)

200-2000 AC

 Spindle Taper

(mm)

Φ52

 Main Motor Power

(kw)

5.5kW AC

 Z Travel

(mm)

800

 X Travel

(mm)

235

 Driving  Motor Torque X/Z

N.M

Servo 5/7.7

 Repeat Position Precision X/Z

(ISO)

0.009/0.01

 4 work position Carriage


Standard

 Tool Rack


On requirement

 Tool Size

(mm)

25×25

 Tool Change time


2s

 Tailstock Sleeve travel


130

 Tailstock Sleeve Diameter/Taper


Φ60/MT4

Outer Size

2200×1200×1520

Total Weight

1800(For Ref)

CK6140A CNC Lathe Machine Specification List

Unit

Description

Brand/From

CNC SYSTEM

GSK 928TEA

Guangzhou

Driver

GSK Servo

Guangzhou

Main Motor

5.5KW Converter Motor

Shandong/Shanghai

Chuck

3 Jaws Chuck

Hohhot

Inverter

5.5KW Inovance/7.5KW V&T

Shenzhen

Guide Screw

HJ/QIDONG

Shanxi/Jiangsu

Spindle Bearings

HRB

Harbin

Carriage

3/4 work position electric tool

Taizhou

Tailstock

Yes

Own

cnc lathe cost
