GQ700

GQ700

MODEL:small cnc machining center

Capacity

1100

X axis travel/mm

700

Y axis travel/mm

600

Z axis travel/mm

150-750

Spindle nose to table surface/mm

1060

Gate width/mm

Worktable

1100*700

Table Size(L*W)

900

Max Load on the table/kg

18*5*120

T-Slot Size/mm

Features:cnc machine center , but structure of gantry type,

prices similar with cnc machining center

Packing:Wooden Case,Standard packing

Delivery Time: 26Days

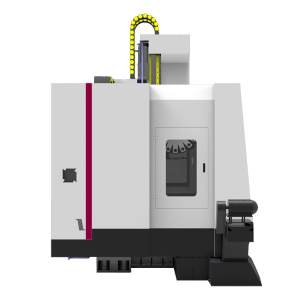

GQ700 small type Gantry cnc machining center  is the newly developed type from Datan CNC in high rigidity and& high efficiency, it is the upgraded substitute for middle VMC, it is the terminator for 1000x600mm Vertical Machining Center.

small cnc machining center

small cnc machining center

small cnc machining center

The gantry structure avoids the
weakness in normal structure,
the depth is 50% less, that means double in rigidity.

The gantry structure avoids the weakness in normal structure, the depth is 50% less, that means double in rigidity.(used vmc machine)

small cnc machining center

We add more guiderail to solve the problem of weakness in ram parts, it improve the rigidity more, doubled the whole machine’s rigidity.

small cnc machining center

Rapid Tools Changer innovated by    Datan CNC, approved by National Patent.
It fixe the Tools Changer on Saddle, moving with spindle at same time, it is less time cost in tool changing.

1:1.2 work table customized for Mold machining, it is designed in T shape, the Clamp position in sides, provide more wide range for work piece, make it more suitable for mould production, also to the square san round shape parts

small cnc machining center

aluminum milling machinevertical mill



Model No.small cnc machining center GQ600GQ700GQ800GQ900GQ1300GQ1500
Travels

X axis travel/mm 100011001300110013001500
Y axis travel/mm 600700800900800800
Z axis travel/mm 500600600600600600
Spindle nose to worktable/mm100-600150-750150-750150-750150-750150-750
Worktable

Table size(L*W) 1000*6001100*7001300*8001000*8001300x8001450x800
Gate width/mm 106011601100110014001600
Max load on the table/kgs 8009001000100015001800
Spindle

Spindle speed/rpm 10000
Spindle taper 7/24 Taper No.40
Spindle motor/kw 7.5/11
Feedrate

X,Y axis rapid traverse(M/min)  36
Z axis rapid traverse(M/min) 24
Max cutting feedrate(mm/min) 100-10000
A.T.C

Toolmagazine capacity(opt)/pcs Arm type 24
Max exterior tool diameter/mm φ160(80)
Max tool length/mm 250
Max tool weight/kgs 8
Tool change time/sec(T-T) 4.5(Arm Tpye)
Motor

Spindle motor/kw 7.5/11
X /Yaxis AC servo motor/kw 1.8
Z axis AC Servo motor/kw2.5
Shield Standard
Color Standard
Control system FANUC-0i MF-M5


small cnc machining center
