ME650

worktable(L*W) (mm)

780×360

Max load on table(kg)

350

X,Y,Z axis travel (mm)

650/400/450

Spindle nose to worktable (mm)

150~600

Spindle centerline to column (mm)

450

Spindle Taper

BT40 (7:24 )

Spindle Speed (rpm)

8000or12000

X,Y,Z rapid traverse (m/min)

20/20/20

Spindle motor (kw)

5.5

Servo motor power (kw)

1.2/1.2/1.2


Features:Compact, high cost performance vmc machine

Packing:Wooden Case,Standard packing

Delivery Time: 26Days


best cnc milling machine

vmc machine

The main part is of thick ribs
box structure.

Main base is made of Grey
casting iron in high grade
with heat treatment.

3 Axises are of wearing full
support, under double way
pre-pulled.

The Balancing weight
contains mobile guiding
system

vmc machine

Machine(base,column,saddle,table) has improve 50% in rigidity compare with traditional structure, in cutting feed rigidity either, Improve accuracy in machining and the durability of tools.

Whole improving in function, the perfect combination of efficiency and stability

Saddle modified into thick ribs box structure, get 50%
more in rigidity.

Whole improving in function, the perfect combination of efficiency and stability

Get 30% more power in 3 axes, 35% in spindle motor.

Vertical milling machine

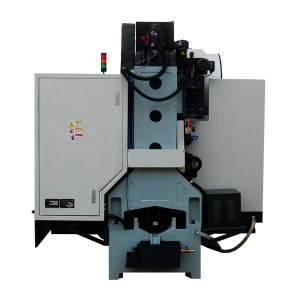

Column of VMC machine now is wide range box structure, improving 60% in rigidity.but has lower vmc machine cost

Whole improving in function, the perfect combination of efficiency and stability

Vertical milling machine

With this system, cnc milling machine
can get of the chips efficiently,
saving time much.

Powerful chip washing system, it can
washing out the chips rapidly, avoid
the bad effect in machining.

Standard Arm types A.T.C., more
rapidly than armless type in changing
tools, provide more efficiency in
machining.

Full leveled up in CNC system, more
comfortable with human engineering,
simply operation.

Vertical milling machine

vmc machine cost,vmc machine cost

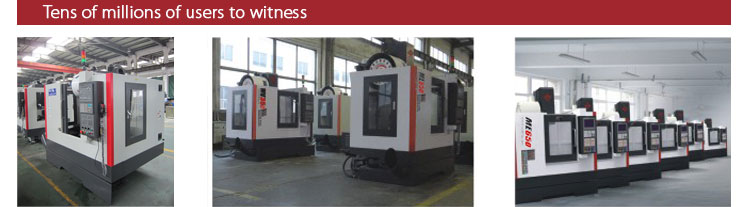

Tens of millions of users to witnessProcessing caseProcessing case


Model NO. Vertical milling machine

ME650  vmc machine

worktable(L*W) (mm)

780×360

Max load on table(kg)

350

X,Y,Z axis travel (mm)

650/400/450

Spindle nose to worktable (mm)

150~600

Spindle centerline to column (mm)

450

Spindle Taper

BT40 (7:24 )

Spindle Speed (rpm)

8000or12000

X,Y,Z rapid traverse (m/min)

20/20/20

Spindle motor (kw)

5.5

Servo motor power (kw)

1.2/1.2/1.2

Tool storage capacity (pc)

Armless type 16

Max tool diameter (mm)

150(80)

Tool change time(T-T)/sec

2.5

T-slot size (mm)

110*18*3

Positioning accuracy (mm)

0.01

Repeatability positioning accuracy (mm)

0.006

Control system

Siemens 808D

Space requirement (L*W*H)

2400×2000×2260

Machine weight (kg)

3000

vmc machine
