ME500

X axis travel/mm

500

Y axis travel/mm

300

Z axis travel/mm

450

Spindle nose to table surface/mm

90-540

Spindle nose to column surface/mm

350

Table size/(L*W)

600*300

Max load on the table/kg

500

T-slot size/mm

14*3*105

Spindle speed/rpm

8000 or 10000


Features:high precision and high speed cnc milling machine

Packing:Wooden Case,Standard packing

Delivery Time: 26Days


used cnc milling machine

used cnc milling machine

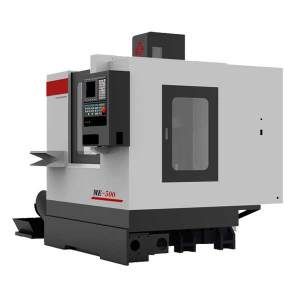

ME500 is the smallest Size Model In the series of DATAN 4th generation used cnc milling machine, Also is one of the vertical mill in the World,it can be sell in a promotion price.

used cnc milling machineused cnc milling machineused cnc milling machine

Mini But Perfect Rigidity
Short Throat Depth Design,
Wide Base
3 Axis Adopts Rectangular
Guideway

Rigidity Improved More
Than dovetailed Guideway
of last Generation

vertical mill

High Rigidity人 Shape Structure
Column

Not Only Meet the Rigidity

But Also convenient to maintain and use

used cnc milling machine

Specializing in the production of compact vertical mill for more than 14 years, and is the most senior manufacturer of small size machining center in China, Having experienced upgrade improvement many time, its eminent performance, high reliability, have been approved by many  customers

used cnc milling machine

ME500 is one of the upgraded
Products of used cnc milling machine for sale,
Mainly for customers to solve the problem
of humanization,difficult management
and etc.with the design of low cost,
high performance,make its have extremely
High cost performance,Let users can obtain
the Benefit of Machining Center with
Less Investment.

used cnc milling machine

CNC Controller,Spindle.ATC and etc.Main Parts from Taiwan,Performance Stable.Many Humanized design like:Single Door Design Make the operator More easier to open and close the door,High brightness working light to ensure not affected by the lights is too dark when operating and etc.it is high appreciated by Many users.



Model No.used cnc milling machineME500ME650ME745
CapacityX axis travel/mm500650700
Y axis travel/mm300400450
Z axis travel/mm450450550
Spindle nose to table surface/mm90-540150-600150-700
Spindle nose to column surface/mm350450520
WorktableTable size/(L*W)600*300780*360850*450
Max load on the table/kg500600700
T-slot size/mm14*3*10518*3*11018*3*110
SpindleSpindle speed/rpm8000 or 100008000 or 100008000 or 10000
Spindle taper/spindle shank7/24 Taper BT.40

7/24 Taper

BT.40

7/24 Taper

BT. 40

Max spindle inner diameter/mmΦ60Φ60Φ70
Spindle motor(30 mins,mitsubishi)/kw3.75.55.5
Feed rateX,Y,Z rapid traverse/M/min36/36/3636/36/3636/36/24
Max cutting feed rate(M/min)101010
A.T.CTool storage capacity/pc

Armless type 16

Armless type 16Armless type 24
Max tool diameter(adjacent tools)/mmΦ150(70)Φ150(70)Φ150(80)
Max tool length/mm250250250
Tool change time(T-T)/sec2.52.52.5
AccuracyPositioning accuracy/mm±0.01±0.01±0.01
Repeatability positioning accuracy/mm±0.006±0.006±0.006
Machine sizeMachine height/mm180022602330
Space requirement(L*W)2200*20002400*20002730*2200
Net machine weight/kg180022602330
Power requirement/KVA101015
Drive motor/kw1.0/1.0/1.01.2/1.2/1.21.8/1.8/2.5
Control systemSiemens 808DSiemens 808DSiemens 808D


Standard machine configuration1. cnc milling control system:Syntec 10B controller .
2. 7/24 Taper BT.40 spindle ,8000rpm spindle from China Taiwan, HNC Servo motors
3. armless type A.T.C system,20 tools;
4.fully enclosed splash guard of machine
5.steel telescopic covers for 3 axis guide rails
6.work lamp and alert lamp
7.tool box and maintenance tool
8.heat exchanger
9.auto lubrication system
10.separate water tank
11.handwheel
12.380v/220v,50HZ transformer
13.free standard accessories
Main part supplier1.      used cnc milling machine controller: Siemens 808D controller from German
2.      x/y/z servo motor: HNC servo motors from China
3.      x/y/z drive and converter: made in China
4.      spindle motor: made in China
5.      ball screw :made in Taiwan(Hiwin Brand)
6.      ball screw bearing: HRB made in China(Chinese No.1 bearing)
7.      spindle bearing :HRB from China.
8.      handwheel: SUMTAK from Japan
9.      electrical component: made from China Taiwan

used cnc milling machine
