MODEL:cnc gantry machining center



X axis travel/mm


Y axis travel/mm


Z axis travel/mm


Spindle nose to table surface/mm


Gate width/mm



Table Size(L*W)


Max Load on the table/kg


T-Slot Size/mm

Features:Buy now, can free upgrades for Japanese

THK linear rail, limited 10 sets

Packing:Wooden Case,Standard packing

Delivery Time: 26Days

GS1530 is the largest type in GS series from Datan CNC, most machine factories did not have this kind of double column VMC in such range, normally the width of door is more than 1800mm, it fills in the vacancy in this range, it is the innovation in Datan CNC.

cnc gantry machining center

With the advantage in rigidity, close
structure, short throat depth, full
worktable support, N2 balance in Z

cnc gantry machining center

Special design high rigidity, we adopt the
square ram system which use large gantry,
it double the surface, improve the rigidity.

cnc gantry machining center

Beam adopts honeycomb design, avoid
the loop distortion in beam, get 50%
more in rigidity.

cnc gantry machining center

Although only 6 pcs, the new A.T.C. adopts
new push out method, but it is enough for
mould parts machining, and in compact
structure, level up the speed in tools
changing, reduce the cost from clients.

cnc gantry machining center

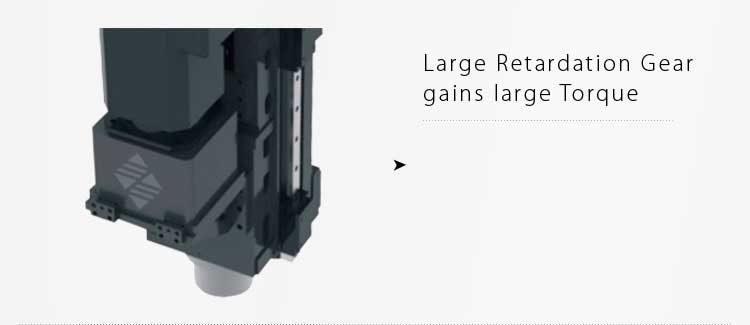

Optional in Retardation system, it makes
possible in less cost gains more torque
cutting feeding, and reduce the cost in
maintenance compared with expensive
ZF gear box.

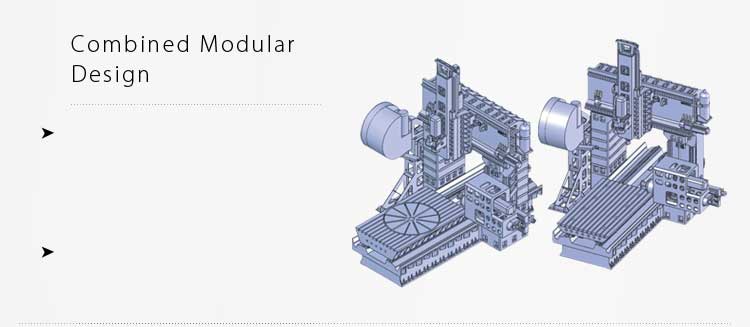

cnc gantry machining center

On clients’ demand, we can upgrade the
machine into GAB/GABT muti-workstational
Gantry machine center, complete milling,
drilling, and tapping in one phase, improve
the precision and efficiency.
With rotary table, we can work on
pentahedron shape work piece.

cnc gantry machining center

gantry type milling machine

Model No.GS-1215GS-1220GS-1520GS-1525GS-1822GS-1830
Travels gantry milling machine
X axis travel/mm150020002000240022003000
Y axis travel/mm120012001500150018001800
Z axis travel/mm80080080080010001000
Spindle nose to worktable/mm150-950150-950200-1000200-1000200-1200200-1200

Table size(L*W)1500*10002000*10002000*13002500*13002200*15003000*1500
Gate width/mm120012001500150018001800
Max load on the table/kgs350035005000500060006000
Spindle speed/rpmZF two speed gearbox(1:1/1:4)/40-6000
Spindle taper7/24 Taper No.50
Spindle motor/kw15/18.5
X,Y axis rapid traverse(M/min)202020151212
Z axis rapid traverse(M/min)15
Max cutting feedrate(mm/min)10-10000
Toolmagazine capacity(opt)/pcsArm type 24
Max exterior tool diameter/mmφ200
Max tool length/mm350
Max tool weight/kgs20
Tool change time/sec(T-T)5(Arm Tpye)
X,Y,Z axis0.025<5000
positioning accuracy/mm
X,Y,Z axisi repeatability positioning accuracy/mm0.015
Machine size
Power requirement/KVA40
Space requirement(L×W)4500*32005500*32005000*38006000*38005800*40007500*4000
Machine height/mm400040004300430046004600
Machine weight12500155001900025000 2500028000
Control systemFANUC-0i MD

Main machine configuration

 gantry milling machine

1.cnc gantry machining center control system: Fanuc-0i MD (full set)
2.Arm type A.T.C with 24 tools, 30-6000rpm spindle.7/24 taper No.50.
3.ball screw chip removal system
4.heat exchanger
5.heavy-load linear guide rails on X/Y axis
6.automacti lubrication system
7.work and alarm lamps
8.coolant system
9.double nigtrogen gas cylinder balance system
10.fully enclosed splash guard
11. RS232 connector and DNC connector
12.rigid tapping
13.standard accessories
